610x610 Mould Polyurethane Dewatering Vibrating Screen Mesh

MOQ:	10 peças
Preço:	USD 35-45 per piece
Embalagem padrão:	filme bolha de ar + caixa de madeira
Período de entrega:	7 - 10 dias úteis
Método de pagamento:	L/C,D/A,D/P,T/T,Western Union
Capacidade de abastecimento:	10000 peças por mês

Informações

Descrição do produto

Informações pormenorizadas

Lugar de origem

China

Marca

HUATAO

Número do modelo

HT-013

Material:

Poliuretano

Tamanho:

610mm*610mm /305mm *305mm

Tipo:

Linear

Recurso:

Eficiência de triagem elevada

Triagem de Separação

Função:

Seleção \ separação \ classificação \ que peneira

Destacar:

polyurethane vibrating screen mesh

610x610 vibrating screen mesh

dewatering vibrating screen mesh

Descrição do produto

Mould Customize Polyurethane Vibration Dewatering Mine Mesh

Introduction

Polyurethane screen sieve is fabricated by advanced polyurethane materials with embedded metal framework structure, which combines all the characteristics of rubber sieve, but also have superior wear resistance, higher screening accuracy, better tear resistance.

Specifications

Material: polyurethane material and steel frame.

Cut point: 0.5mm
Thickness: 25mm - 60mm.
Hole type: square, rectangular, round and other types are available.
Hole size: 2.5mm - 140mm.
Panel width: customed
Panel length: customed
Hook type: metal or polyurethane.
Hook direction: transverse or longitudinal.
Color: red, yellow, and other colors you want.

Technical data

Origin place	Yantai China (Mainland)	Brand Name	FUSHUN	Material	Polyurethane
Color	Optional	Elastic Resilience	34%	Abrasion Loss	0.019cm3/1.61km
Elongation	445-557%	Tensile Strength	30-53MPa	Tear strength	70KN/m
Compressive strength	6-10.5Mpa	Hardness	Shore60-98A	Temperature	-40°~ 60°

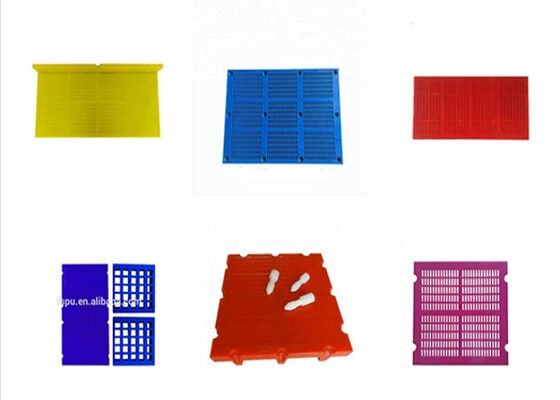

610x610 Mould Polyurethane Dewatering Vibrating Screen Mesh 0

Features

Polyurethane materials for wear resistance. Self-cleaning apertures reducing pegging and blinding. Wide range apertures suit most applications. Various panel sizes to suit all vibrating screens. Different connection type for easy installation and replacement. High screening performance. Low noise. Long service life and durable

Applications

The modular polyurethane screen panel can fit various vibrating screens and widely used in various applications.
Steel plants.
Mining industry.
Cement plants.
Mineral beneficiation industry.
Power plants.
Coal washing.
Sand, gravel separating and screening.

Shipping:
sample is by air Express, and large order is by sea.

Payment terms:

payment term:

1).100% irrevocable L/C at sight.

2).30% T/T prepaid and the balance against the copy of B/L.
3).30% T/T prepaid and the balance against L/C

Samples:
samples are available but you need pay for the sample price and freight fee.
the sample fee is returned after you place an order.
The delivert time is about 30days.
